Measurement Reticle Scale for 7X Peak Loupe 2015
Peak measurement reticle scales . Rulers fit for Peak 2015 7X optical comparator magnifier . For inspection and precision test of small scale products. Instrument lens to measure in inches or in millimeters . This Glass scale also fits Peak Lupes 1975, 1976, 1998, 1999 , and 2016.
Sizes available are:
Standard metric mm in black cross hair with metric scale on horizontal plane, zero center reading, 0 to 10mm each way
# 7 in black 0-0.4in.,.005in. Div., .025 in Squares. Circles .01mm-2.5mm diam.
# 8 in black metric millimeters 0 to 20mm scale on horizontal plane, zero at left reading, 0.1mm divisions
# 13 in black inch scale on horizontal plane, zero at left reading, 0 to 0.8", scale divisions 0.005"

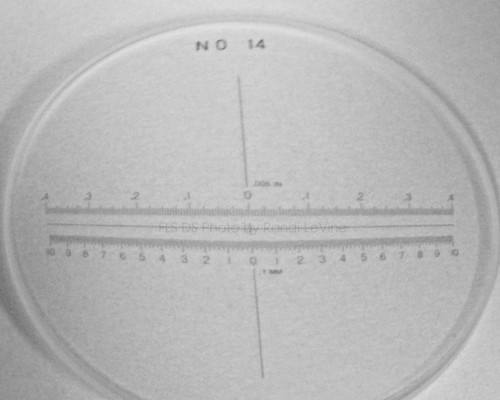

# 14 in black inch and metric millimeter scale on horizontal plane, zero at center with cross hair. Inches 0 to .4 each way to left and right from center, divisions .005". Millimeter 0 to 10mm each way from center out to left and right, line divisions 0.1mm
White reticles are special order only, email customerservice@pcbsupplies.com for more information on white print.
Discount Supplies Sale Price: $14.50
